Chalis

Available from 11W-113W

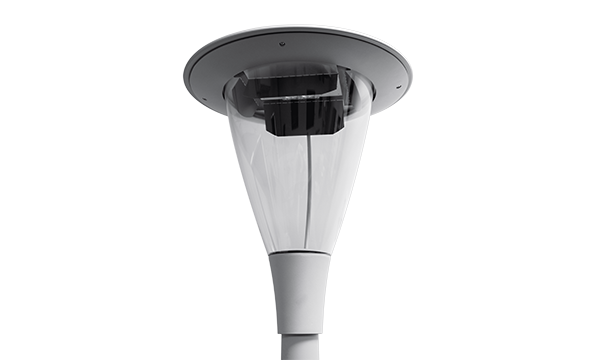

The Chalis post top range comprises high efficiency LED sources catering for both roadway and area lighting applications and is available in a range of power outputs to suit. The LEDs, lenses and electronic drivers are all housed within a contemporary and stylish, vandal resistant polycarbonate bowl and LM6 aluminium body with a number of features and benefits over that of a conventional post top lantern. Full tool free access is granted via the removable top spinning section which can also accommodate a range of externally mounted NEMA and Zhaga Book 18 sockets to allow full CMS or individual NEMA photocell operation.

Physical, on-site, integral power adjustment within lantern negating the need for any reprogramming device(s).

Powerset Logo

PowerSet feature available; field adjustable, integral power output selection device.

Specifications
https://www.trtlighting.co.uk/wp-content/uploads/2023/08/cta-bg.jpg

Contact us

Get in touch

Contact us for a quote today

Discover our exterior lighting solutions designed for energy efficiency and sustainability. Request a comprehensive quote tailored to your project needs today.

Get a Quote

Downloads

Photometry

TRT Lighting supports, promotes and uses Lighting Reality for all road lighting calculations.

Photometric Database

Our complete photometric database is available for use within this industry standard lighting design package which is available for download from www.lightingreality.com

Specification

Specification

  • LED colour temperature 2200K, 2700K, 3000K or 4000K
  • Colour rendering index >70
  • Projected L90 after 100,000 hours
  • Power factor >0.95 at full load
  • Polyester powder coat finish in light grey, dark grey, black or a bespoke colour
  • High quality high pressure die cast LM6 aluminium components
  • UV stabilised polycarbonate bowl
  • Universal shield for front, back and sides available
  • In-built ventilation (breather) plug for pressure equalisation
  • CLO available
  • PowerSet feature – Field adjustable, integral power output selection device (optional)
  • Controls – NEMA 3, 7, Miniature Photocell and Zhaga Book 18 (SR) socket
  • Part Night Dimming (PND) with manual dimming override option
  • DALI compatible for use with CMS
  • Optional surge protection 10kV/10kA
  • Supplied pre-cabled with Arctic Grade PVC flex
  • Post top mounting 60mm or 76mm
  • Tool-less access
  • UMSUG codes available for full product range

Range Overview

Chalis 32 LED Chalis 64 LED
System Power 11-69W 57-113W
Road Optics
Area Optics
LED CCT 2200K, 2700K, 3000K or 4000K
Lumen Output Up to 10,688lm Up to 18,160lm
LED CRI >70

Shield Options

Universal Front/Rear/Side 81BAF71353

Electrical Characteristics

Chalis 32 LED Chalis 64 LED
System Power 11-69W 57-113W
LED CCT 2200K, 2700K, 3000K or 4000K
LED CRI >70
Lumen Output Up to 10,688lm Up to 18,160lm
Lumen Maintenance Projected L90 after 100,000 hours
Drive Current 100-700mA 300-600mA
Driver Output Constant current output with AM dimming
Power Factor
(Full Load/Half Load)		 0.95/0.90
Operational Voltage 220-240VAC rms
Operating Frequency 50/60Hz
Inrush Current
(Apk/50%-µS)		 42A/238µS 80A/250µS
Running Current
(Max)		 316mA 517mA
Surge Protection
(COM/DIF)		 10kV/6kV
Additional Surge Protection
(On Request)		 10kV/10kA
Lighting Controls Options NEMA 3, 7, Miniature Photocell, Zhaga Book 18 (SR) socket, PND and CMS compatible
Dimming Protocols DALI

Mechanical Characteristics

Housing Material High quality die cast aluminium
Bowl Material UV stabilised polycarbonate
Lens Material PMMA
Housing Finish Chromate free pre-treatment, polyester powder coat, light grey (RAL9006), dark grey (RAL7022), black (RAL9005) or bespoke colours on request
Ingress Protection Rating IP66
Weight 8kg
Wind Area 0.14m²
Impact Resistance Rating IK10 (bowl)

IK08 (top)
Mounting Methods Post top 60mm or 76mm
