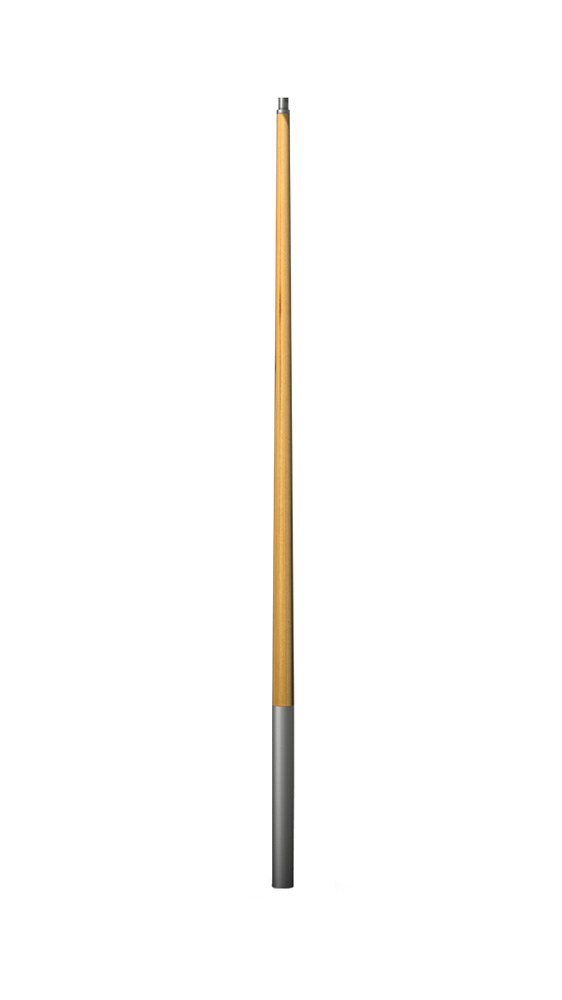

Wooden Tapered Columns
- 5m and 6m heights
- Round tapered column
- GL28h glu-lam timber shaft
- Galvanised steel cylindrical base and spigot (hot dip galvanised to BS EN 1461)
- Root base (flange base optional)
- Pair your column with the Oaken lantern for a fully coordinated timber lighting solution
Disclaimers/Notes:
It is the installers responsibility to ensure the columns are installed correctly. TRT Lighting do not accept liability for incorrect installations.
The delivery vehicle will be a 63ft articulated lorry measuring 2.4m (w) and 3.9m (h). It operates on a scheduled route with multiple deliveries and is equipped with a body-mounted hi-ab crane. Site access must be verified before placing an order. Project-specific or non-standard transport arrangements can be provided upon request.

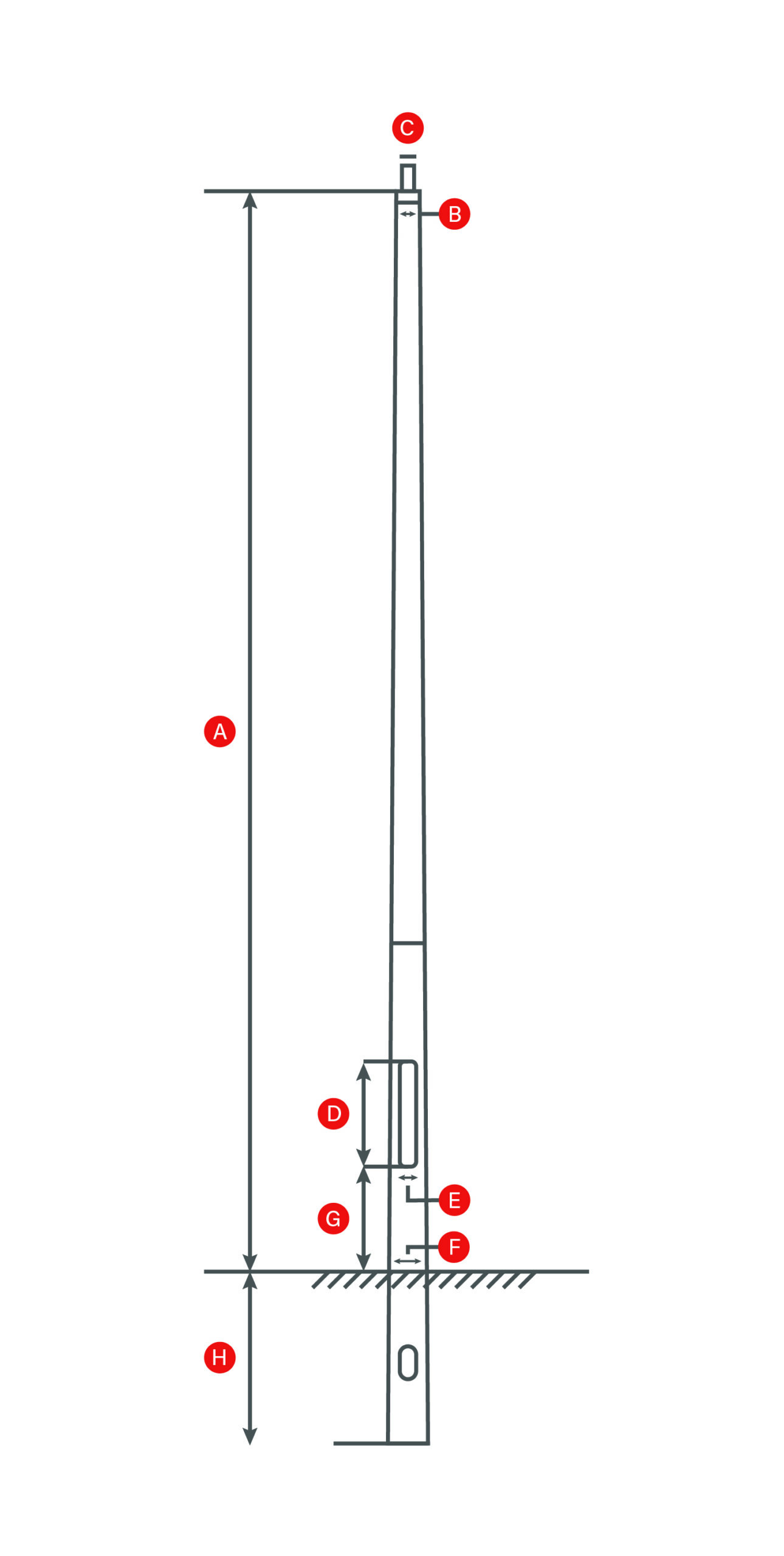

| A Type |
B
Top Ø |
C
Spigot Ø |
D
Door Height |
E
Door Width |
F
Base Ø |
G
Ground to Door |
H
Planting Depth |
Max. Headload
inc. Reducers/Brackets |
Windage
|
|---|---|---|---|---|---|---|---|---|---|
| 5m | 101mm | 76mm | 500mm | 100mm | 168mm | 500mm | 800mm | 25kg | Variable |
| 6m | 101mm | 76mm | 500mm | 100mm | 168mm | 500mm | 1000mm | 25kg | Variable |
