Steel Tubular
Columns –
Standard

  • 5m, 6m, 8m and 10m heights
  • Tubular column
  • Galvanised steel (hot dip galvanised to BS EN 1461)
  • Root base
  • For post top use or single bracket only
  • Need a spigot adaptor? See our spigot adaptor page for 8m and 10m columns

Disclaimers/Notes: It is the installers responsibility to ensure the columns are installed correctly.  TRT Lighting do not accept liability for incorrect installations.

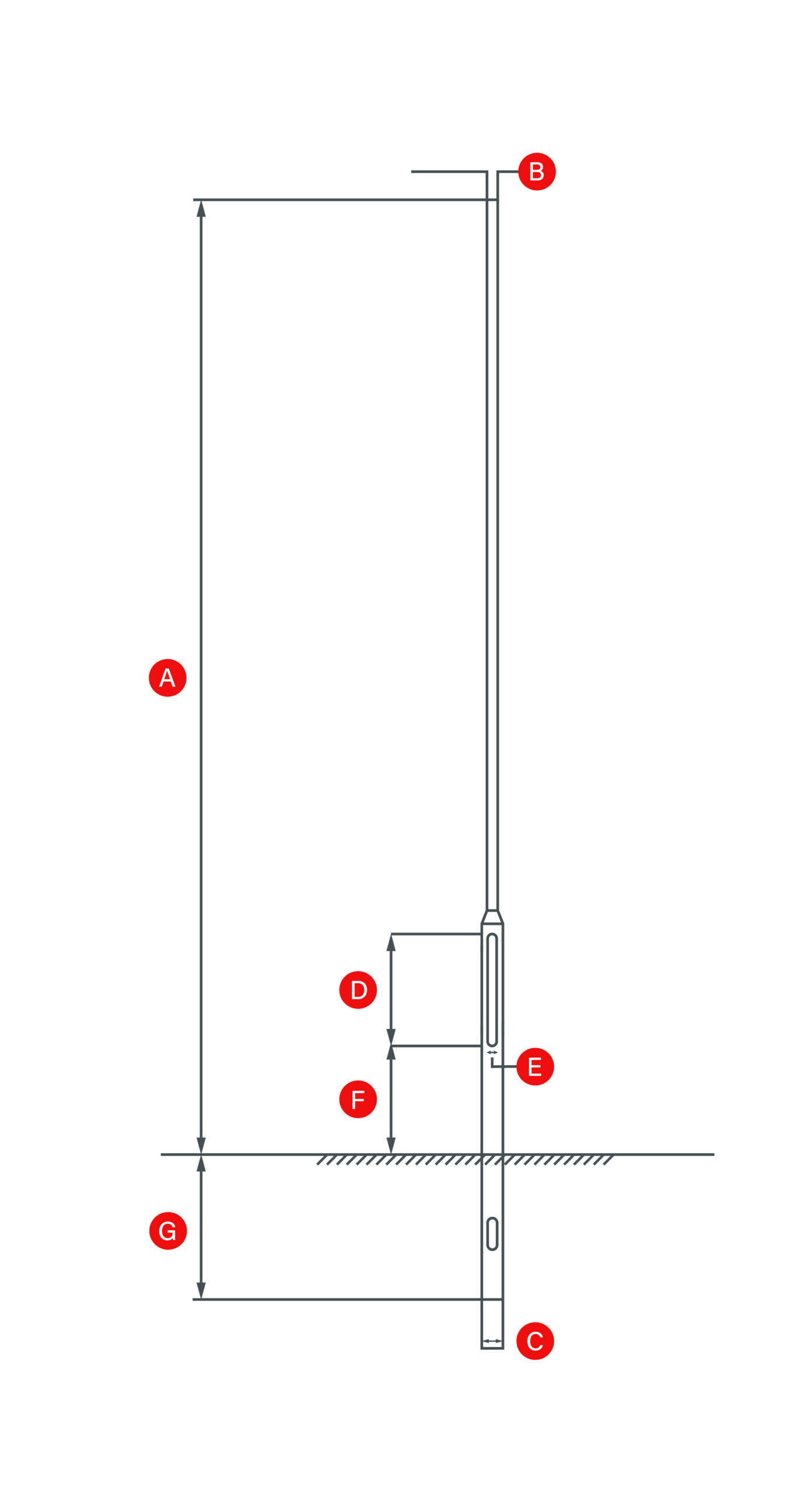

A Type B
Shaft Ø
C
Base Ø
D
Door Height
E
Door Width
F
Ground to Door
G
Planting Depth
Max. Headload
inc. Reducers/Brackets
Windage
5m 76mm 140mm 500mm 100mm 400mm 800mm 35kg 0.32m2
6m 76mm 140mm 500mm 100mm 400mm 1000mm 20kg 0.13m2
8m 89mm 168mm 600mm 115mm 400mm 1200mm 25kg 0.20m2
10m 114mm 168mm 600mm 115mm 400mm 1500mm 25kg 0.20m2
