Orbix 360

Available from 10W-19W

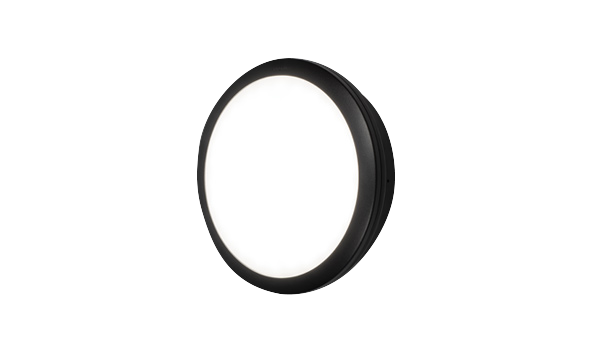

The Orbix 360 is a compact, vandal-resistant circular bulkhead with a high efficiency satin polycarbonate cover and strong high-pressure die-cast aluminium body.  The luminaire is available in two versions:

Plain: For wall, canopy or ceiling mounting and providing a 360° light distribution. This version can be semi-recessed using an optional recessing bezel which may be preferable for aesthetics where a shallower install is required, or to match an existing style.

Eyelid: The wall mounted hooded version is designed to reduce obtrusive and nuisance light in residential applications.

In addition to a tamper-resistant retaining screw, the aluminium bezel hides the module fixing screws, reducing the risk of vandalism making it ideal for exterior applications such as external pathway, perimeter or canopy lighting.

Installation and maintenance is simplified with the ‘twist and lock’ bezel and a one piece LED module.  The module being a pre-assembled unit which includes the PCB, control gear, control components and cover. The supplied pre-marked drill points simplify rear or side conduit entries.


Contact us

Get in touch

Contact us for a quote today

Discover our exterior lighting solutions designed for energy efficiency and sustainability. Request a comprehensive quote tailored to your project needs today.


For photometric data, please email photometry@trtlighting.co.uk



  • LED colour temperature 4000K
  • Colour rendering index >80
  • Projected L80 after 100,000 hours
  • Power factor >0.90 at full load
  • Strong high pressure die cast LM6 aluminium body and bezel
  • Polyester powder coat finish in dark grey or a bespoke colour
  • High efficiency fire-retardant satin polycarbonate diffuser
  • Plain or eyelid cover options
  • Tamper-resistant cover screws as standard
  • Easily replaceable LED module and control gear
  • Lux Guard (patent granted) – Innovative LED current sharing PCB design that maintains light output in the event of LED failure(s)
  • Lumi-LinQ option (with or without wireless emergency feature)
  • Optional photocell control
  • Bezel trim for semi-recessed mounting
  • Complies with M.O.D. JSP482 Chapter 8 Document for ‘Category C’ areas

Range Overview

Orbix 360 – Plain Orbix 360 – Eyelid
System Power 19W 10W
Lumen Output 2,245lm 1,135lm


M20 Sealing Washer Kit 83KIT73256
Tamper-Resistant Pin Torx Bit Set (T25 & T10) 83KIT73272
Bezel for Semi-Recessed Mounting – Graphite 81CVR73273G2

Electrical Characteristics

Orbix 360 – Plain Orbix 360 – Eyelid
System Power 19W 10W
Lumen Output 2,245lm 1,135lm
Lumen Maintenance L80/B10 after 100,000 hours
Power Factor
(Full Load/Half Load)
Operational Voltage 220-240VAC rms
Operating Frequency 50Hz
Inrush Current
5A/50µS 16A/255µS
Running Current
88mA 46mA
Surge Protection
Lighting Controls Options Photocell, Lumi-LinQ and Lumi-LinQ with wireless emergency feature

Mechanical Characteristics

Housing Material High pressure die cast LM6 aluminium
Cover Material Fire retardant polycarbonate
Housing Finish Chromate free pre-treatment, polyester powder coat, dark grey (RAL7022) or bespoke colours on request
Ingress Protection Rating IP66
Weight 2.2kg  (plain version)

2.4kg (eyelid version)

Impact Resistance Rating IK11
Mounting Methods Wall, canopy or ceiling (plain version)

Wall (eyelid version)

Rear and side conduit entries (both versions)
