NEW Altura Control Gear Enclosure
Driver Wattage 18W-200W Available
The Altura control gear enclosure range has been developed to provide a practical and secure housing solution for illuminated handrail installations. Designed specifically to complement Altura Midi and Maxi illuminated handrail, the steel wall-mounted enclosures simplify installation, maintenance access and control integration across bridges, ramps, stairways and exterior public realm applications. With robust IP66 and up to IK10-rated protection, the range helps deliver a complete and future-ready illuminated handrail solution.
Available in standard, emergency and Lumi-LinQ Emergency configurations
Supports automated emergency testing and remote monitoring functionality through Lumi-LinQ Emergency
-
I
Electrical Class -
Up to IK10
Impact Resistance -
IP66
Ingress Protection -
4.3-4.9kg
Weight
Contact us
Get in touch
Contact us for a quote today
Discover our exterior lighting solutions designed for energy efficiency and sustainability. Request a comprehensive quote tailored to your project needs today.
Specification

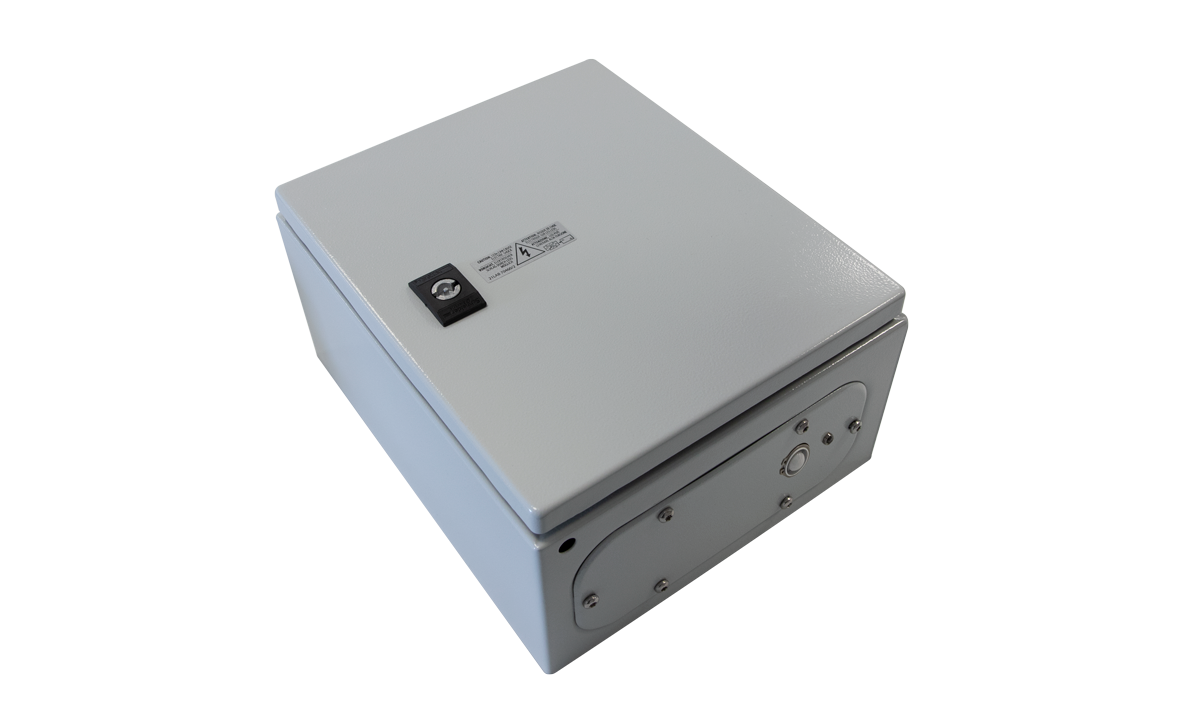

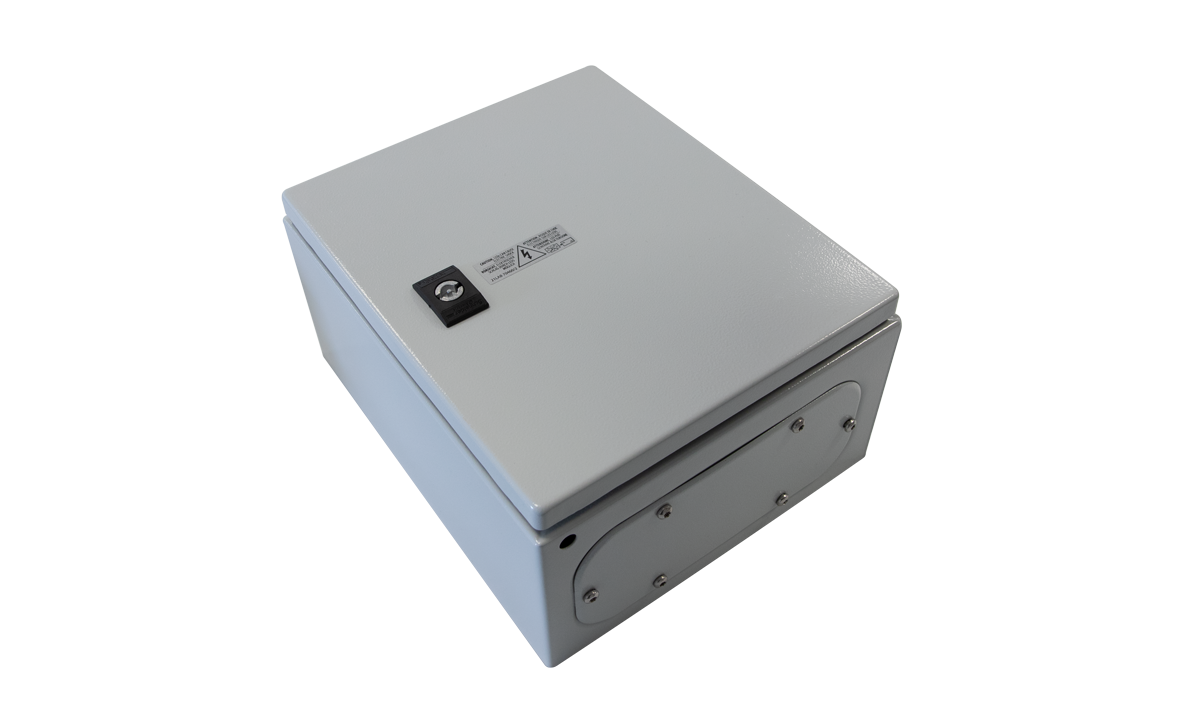

Specification – Control Gear Enclosure
- Steel wall mounted enclosure box with gland plate
- Light grey polyester powder coated surface (RAL7035)
- Double bar door lock
- Mains input 230V AC
- 1 x M20 gland provided for mains input
- M16 gland(s) provided for handrail driver power/DALI cables

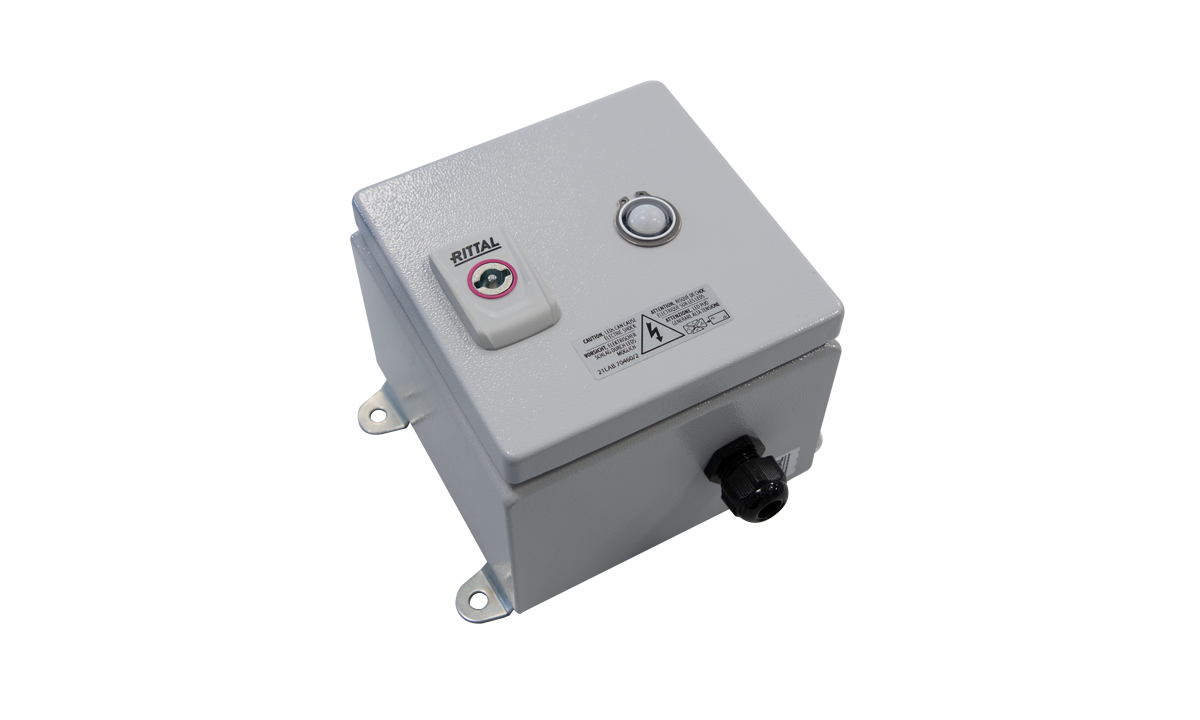

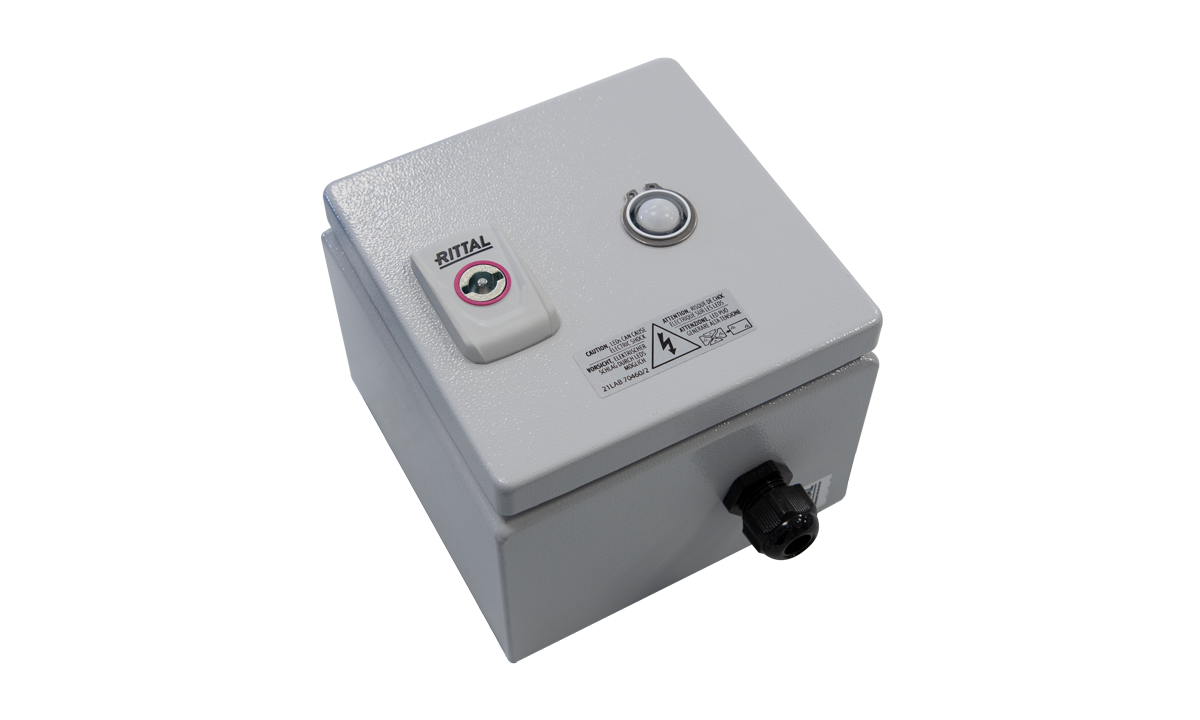

Specification – Additional Lumi-LinQ Remote Enclosure
- Steel wall mounted enclosure box with gland plate
- Light grey polyester powder coated surface (RAL7035)
- Cam door lock
- Mains input 230V AC
- 1 x M20 gland provided for mains input
Range Overview
| Product | System Power | Controls | |||
|---|---|---|---|---|---|
| Standard | Emergency | Lumi-LinQ Standard | Lumi-LinQ Emergency | ||
| AGE | 18-200W | ||||
| Emergency Version Includes | Lumi-LinQ Emergency Version Includes | ||
|---|---|---|---|
| 3hr integral emergency battery and module (LiFePO4) | Mid-bay Lumi-LinQ pod complete with backpack and wip antenna | DALI PSU | |
Driver Wattage
| Driver Wattage | Qty of Altura Midi Modules | Qty of Altura Maxi Modules |
|---|---|---|
| 18W | 1-3 | 1-2 |
| 35W | 4-7 | 3-4 |
| 60W | 8-12 | 5-7 |
| 100W | 13-20 | 8-12 |
| 200W | 21-40 | 13-25 |
Mechanical Characteristics
| Housing Dimensions | 300mm (h) x 250mm (w) x 150mm (d) (Control Gear Enclosure)
150mm (h) x 150mm (w) x 120mm (d) (Lumi-LinQ Remote Enclosure) |
| Housing Material | Steel |
| Housing Finish | Light grey polyester powder coated surface (RAL7035) |
| Ingress Protection Rating | IP66 |
| Weight | 4.3-4.9kg (Control Gear Enclosure)
1.7kg (Lumi-LinQ Remote Enclosure) |
| Impact Resistance Rating | Up to IK10 (Control Gear Enclosure)
Up to IK06 (Lumi-LinQ Remote Enclosure) |
| Mounting Methods | Wall mounted |
