Facet Zero

Available from 10W-20W

Facet Zero reimagines the original Facet luminaire with circularity, performance, and sustainability at its core. Using 50% less metal and 66% less plastic, its compact design reduces overall mass by 48% and achieves a TM66 circularity score of 2.8.

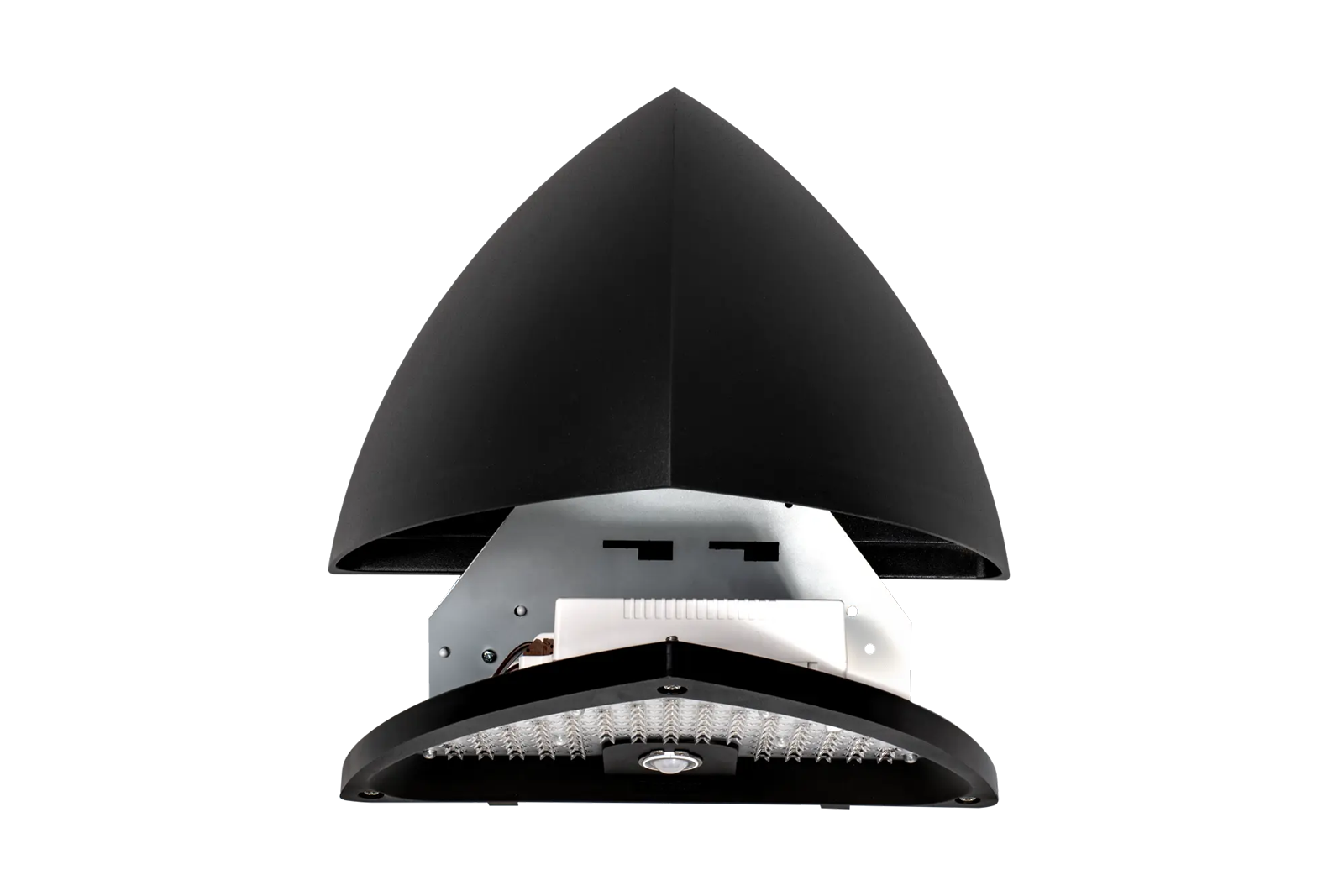

A one-piece LED lens simplifies installation and maintenance, while replaceable control gear and optional Lumi-LinQ wireless controls support flexible, long-term operation.

With photometric efficiency up to 162.8 lm/W, fewer luminaires are needed to meet lighting targets, lowering energy use.

Engineered for zero upward light, it minimises ecological impact, making it ideal for residential, public, and sensitive environments.

Specifications
https://www.trtlighting.co.uk/wp-content/uploads/2023/08/cta-bg.jpg

Contact us

Get in touch

Contact us for a quote today

Discover our exterior lighting solutions designed for energy efficiency and sustainability. Request a comprehensive quote tailored to your project needs today.

Get a Quote

Downloads

Photometry

For photometric data, please email photometry@trtlighting.co.uk

Specification

Specification

  • Excellent product circularity TM66 score of 2.8
  • 48% total product mass reduction compared to original Facet bulkhead
  • LED colour temperature 2700K or 4000K
  • Colour rendering index >80
  • Projected L90 after 100,000 hours
  • Power factor >0.93 at full load
  • Up to 162.8 LL/CW
  • Polyester powder coat finish in dark grey or a bespoke colour
  • Strong high pressure die cast LM6 aluminium body
  • Tamperproof fixings as standard
  • Innovative one-piece LED lens and cover system
  • Replaceable internal control gear
  • Plug-in mains connector
  • Optional photocell control
  • Lumi-LinQ option (with or without wireless emergency feature)
  • Lux Guard (patent granted) – Innovative LED current sharing PCB design that maintains light output in the event of LED failure(s) (wide distribution only)
  • Integral 3-hour emergency option
  • Zero upward light
  • Anti-ligature when anti-pick mastic sealant is applied (not supplied by TRT)

Range Overview

Facet Zero
Wide Distribution		 Facet Zero
Area Distribution
System Power 10W 20W
Lumen Output Up to 1,470lm Up to 3,255lm
LED CCT 2700K or 4000K
LED CRI >80

Electrical Characteristics

Facet Zero
Wide Distribution		 Facet Zero
Area Distribution
System Power 10W 20W
LED CCT 2700K or 4000K
LED CRI >80
Lumen Output Up to 1,470lm Up to 3,255lm
Lumen Maintenance Projected L70 after 100,000 hours
Power Factor
(Full Load)		 0.93
Operational Voltage 220-240VAC rms
Operating Frequency 50/60Hz
Inrush Current
(Apk/50%-µS)		 10A/200µS 30A/200µS
Running Current
(Max)		 40mA 80mA
Surge Protection
(COM/DIF)		 2kV/1kV
Lighting Controls Options Photocell and Lumi-LinQ (with or without wireless emergency)

Mechanical Characteristics

Housing Material High pressure die cast LM6 aluminium
Cover Material One-piece polycarbonate lens and cover
Housing Finish Full polyester powder coat finish in dark grey (RAL7022) or bespoke colours on request
Ingress Protection Rating IP66
Weight 1.9kg
Impact Resistance Rating IK10
Mounting Methods Surface mounted (side cable gland or conduit back box)
