Available from 5W-19W

This innovative dual EV charging pillar with built-in professional lighting is specifically designed for speedy installation in a multitude of environments.

Configurations to suit the user’s power availability, lighting requirements, charging needs, internet connectivity and budget makes the E-Via a complete charging solution.

The robust pillar, primarily constructed of recycled aluminium, has a built-in illuminated head for general area lighting. Sophisticated LED optics provides excellent ground illumination and high light uniformity ensuring users are able to correctly and safely connect the charger. The high performance nature of the illuminated head means that it can be incorporated into the overall exterior lighting solution of the site. Additional lighting aids location of the charging sockets and provides illumination in the bonnet storage or boot area when finding the charge cable. Emergency versions are also available.

Low glare and less than 2% upward light prevents light pollution.

EV charging benefits include high power charging with capability of up to twin 22 kW, 4 internet connection options and flexible payment/usage methods. A large cable termination area provides easy access for servicing and maintenance.


Contact us

Get in touch

Contact us for a quote today

Discover our exterior lighting solutions designed for energy efficiency and sustainability. Request a comprehensive quote tailored to your project needs today.


For photometric data, please email photometry@trtlighting.co.uk


  • Extruded aluminium body for long life and high durability
  • Designed for speed of installation and maintenance
  • Maximised power capacity – intelligent software ensures the optimum amount of charge to each vehicle

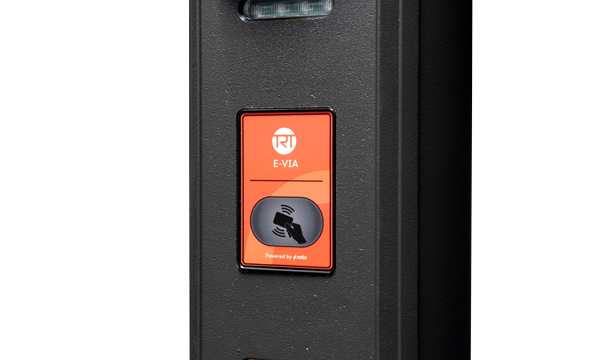

  • Flexible payment/usage methods including plug & charge, mobile app or RFID controlled charging
  • OZEV (Office for Zero Emission Vehicles) grant approved
  • Partnership with any OCPP compliant EV software providers to deliver turnkey EV charging solutions
  • OCPP 1.6 compliant (Can integrate with any back-office)
  • Over-the-air firmware/software updates

Dimensions & Specifications

Charging System IEC 61851 Mode 3
Supply Voltage Single phase / three phase, 230 / 400V, 16A / 32A
Charging Power 7.4kW & 22kW
Protections AC 30mA, DC 6mA
Housing Polyester powder coated aluminium
Dimensions Dia. 165mm x 1500mm
Weight 17kg
Enclosure Rating IP54

IP66 (lighting head)

Operating Temperature -25°C to 40°C
Marking UKCA
O-PEN PME fault detection on single and three phase versions
Metering CT clamp or MID meter versions
Standards BS EN IEC 61851-1:2019 / BS EN IEC 61851-21-2:2021 / BS EN IEC 61000-6-1:2019 / BS EN IEC 61000-6-3:2021 / BS 7671:2018+A2:2022
EV Connections OCPP1.6J
Internet Connections Internet, ethernet, Wi-Fi and 4G
