NEW E-Via City

Available from 5W-19W

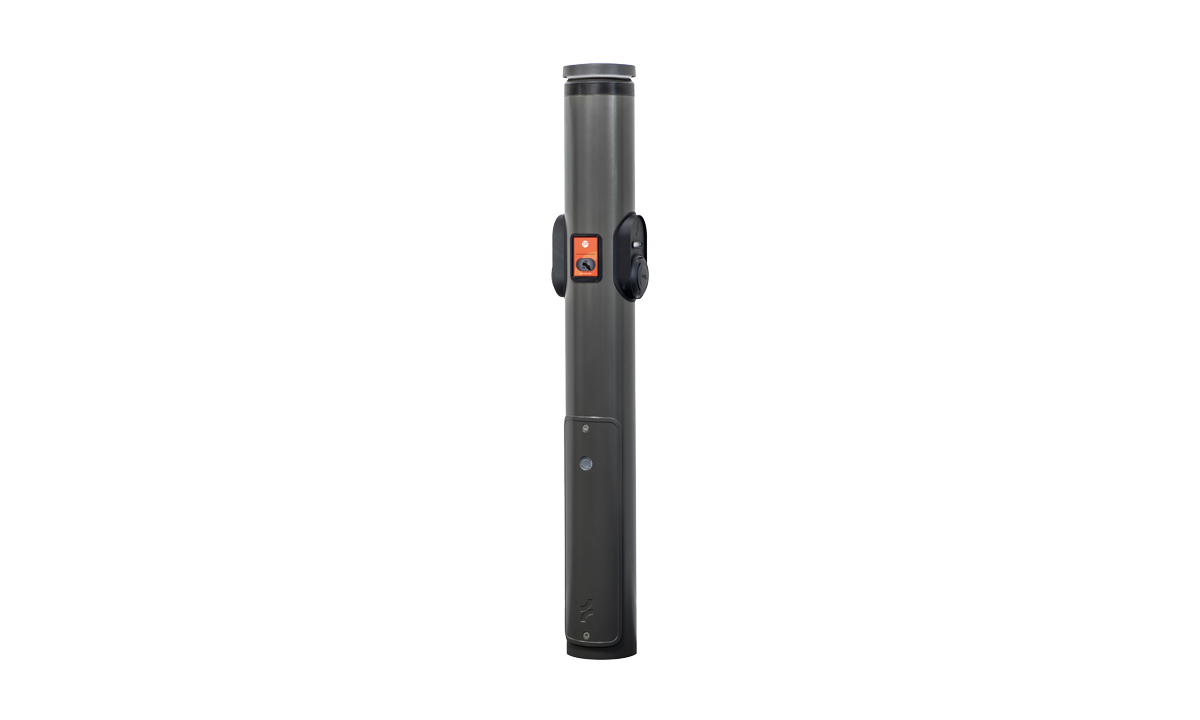

The E-Via City is a compact EV charging pillar with integrated LED lighting, designed for straightforward installation in commercial, fleet and public charging environments.

Combining dual charging sockets with a professional-grade lighting head, the E-Via City provides safe, well-lit charging while contributing to the wider lighting scheme of the site. The 360° symmetric optic delivers 1,100 lumens with less than 2% upward light, reducing light pollution while ensuring effective illumination around the charging point.

Constructed from marine-grade powder-coated aluminium with an IK10 impact rating, the E-Via City is built for durability in public spaces. Its slimline footprint, just 165mm diameter, makes it well suited to locations where space is limited.

Flexible configuration options support single-phase 7.4kW through to three-phase 22kW charging, with static and dynamic load management allowing up to 40 sockets on a single grid connection. Ethernet, Wi-Fi and 4G connectivity are included as standard, with 36 months of data provided. OCPP 1.6J compliance (OCPP 2.0.1 ready) ensures integration with back-office management systems.

Fully PAS 1899 compliant for accessibility, with options for MID-certified metering, solar charging integration and vehicle-to-grid readiness.



Specifications
https://www.trtlighting.co.uk/wp-content/uploads/2023/08/cta-bg.jpg

Contact us

Get in touch

Contact us for a quote today

Discover our exterior lighting solutions designed for energy efficiency and sustainability. Request a comprehensive quote tailored to your project needs today.

Get a Quote

Downloads

Specification

  • Professional lighting optic with less than 2% upward lighting
  • 7.4kW or 22kW dual sockets
  • Fully PAS1899 compliant
  • Single and three phase open PEN fault protection
  • Certified MID meter or CT variants available
  • Extruded aluminium body
  • IK10 impact rating – suitable for public spaces
  • Supports static and dynamic load management
  • OCPP 1.6J compliant and OCPP 2.0.1 ready

Mechanical Characteristics

Housing Material High pressure die cast LM6 aluminium and high quality extruded 6063T6 aluminium
Housing Finish Chromate free pre-treatment, polyester powder coat, light grey (RAL9006), dark grey (RAL7022), black (RAL9005) or bespoke colours on request
Lens Material UV stabilised polycarbonate
Ingress Protection Rating IP54 (lighting head IP66)
Weight 17kg
Impact Resistance Rating IK10
Mounting Methods Socket or flange

Dimensions & Specifications

Dimensions 165mm x 1500mm
Charging System IEC 61851 Mode 3
Power Input Single phase / three phase, 230 / 400V, 63A
Power Output 7.4kW or 22kW
Protections AC 30mA, DC 6mA
Markings UKCA
OCPP OCPP 1.6J compliant and OCPP 2.0.1 ready

Design Features

PEN Fault Detection Open PEN fault protection on single and three phase
Safety Feature Locking mechanism to prevent disconnection of cable under load

Lighting

System Power 5-19W
LED CCT 2700K, 3000K or 4000K
LED CRI >70
Lumen Output Up to 1,100lm
Lumen Maintenance Projected L85 after 100,000 hours

Compliance

Standards LVD 2014/35/EU, EMCD 2014/30/EU, BS EN61851-2019, EN61000-2, EN61000-3, CE certified, BS7671-2018
GDPR Your privacy and sensitive data is handled with care and in compliance with GDPR
Accessibility Fully PAS1899 compliant

Charging Features

Charging Options Single phase 7.4kW to three phase 22kW options
Metering CT or certified MID meter variants available
Suitability Suitable for business, commercial, fleet and public charging
Power Sharing* Connect up to 40 sockets on one grid connection. Available power will be distributed evenly to connected EVs. Supports static and dynamic load management.

*Dynamic load management and solar charging requires an E-Via Sense kit

Connectivity

Connectivity Ethernet, Wi-Fi and 4G sim card and 36 months data supplied as standard
Commissioning Full configuration of the charger set up using a web portal
Secure Authentication Protect your charger from unauthorised use using the RFID access or use the plug and charge mode for fast and easy access
Configurable Cable Lock Option to lock the cable into charger
