NEW E-Straat
Up to 7.4kW

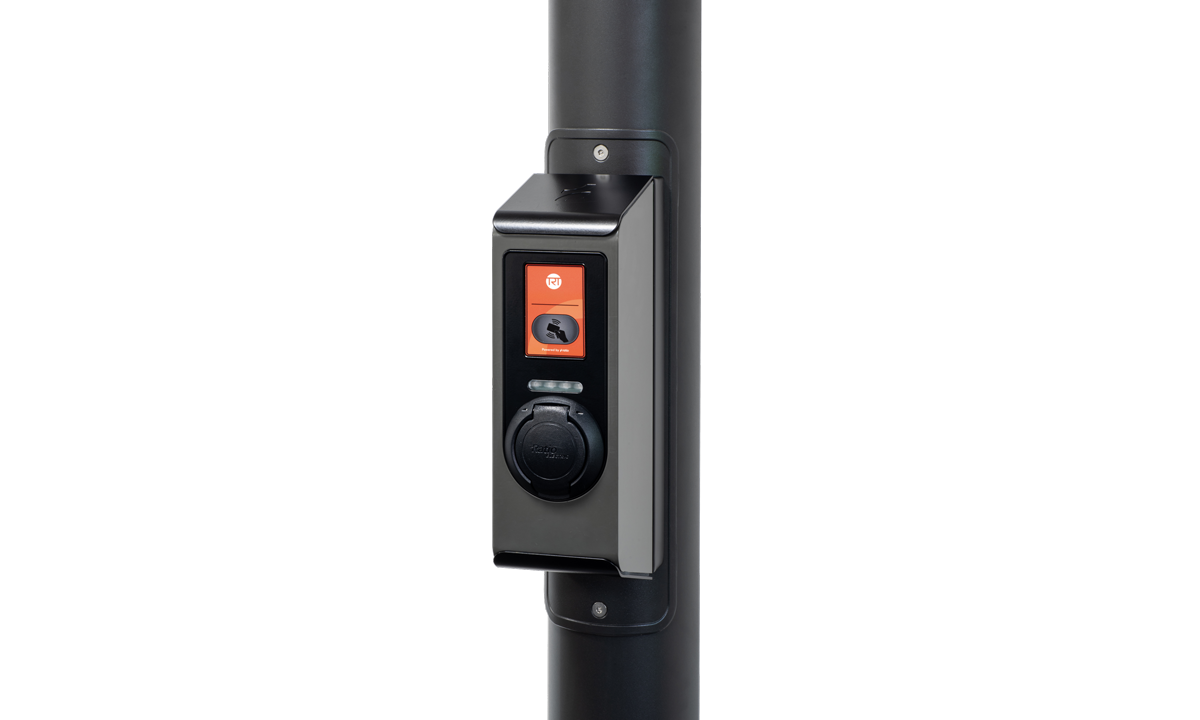

The E-Straat is a compact EV charger designed to retrofit onto existing lampposts and lighting columns, enabling on-street charging infrastructure without the need for new street furniture.
Suitable for 140mm, 168mm and 194mm diameter columns, the E-Straat utilises existing power supplies to deliver up to 7.4kW single-phase charging. Alternative adaptor plates are available for other column sizes.
Constructed from aluminium with an IK10 impact rating, the E-Straat is built for durability in public spaces. The compact housing measures just 130mm x 130mm x 400mm and weighs 5kg, minimising visual impact on the streetscape.
Ethernet, Wi-Fi and 4G connectivity are included as standard, with 36 months of data provided. OCPP 1.6J compliance (OCPP 2.0.1 ready) ensures integration with all major charge point management systems. A certified MID meter enables accurate billing.
Elexon approved and fully compliant with UK regulations. Custom colour options and branding are available.
-
I
Electrical Class -
IK10
Impact Resistance -
IP54
Ingress Protection -
30°C
Maximum Ambient -
-20°C
Minimum Ambient -
5kg
Weight
Contact us
Get in touch
Contact us for a quote today
Discover our exterior lighting solutions designed for energy efficiency and sustainability. Request a comprehensive quote tailored to your project needs today.
Specification
- Can be retrofitted to most columns or lampposts
- Up to 7.4kW depending on column power supply
- Certified MID meter
- Available in bespoke colours and customised branding
- IK10 impact rating – suitable for public spaces
- Elexon approved
- OCPP 1.6J compliant – integrates with all major charge point management systems
- 3 year warranty (with the option to extent to 5 years)
Mechanical Characteristics
| Housing Material | Aluminium |
| Housing Finish | Chromate free pre-treatment, polyester powder coat, dark grey (RAL7022) or bespoke colours on request |
| Ingress Protection Rating | IP54 |
| Weight | 5kg |
| Impact Resistance Rating | IK10kg |
| Mounting Methods | Suitable for 140/168/194mm column lampposts. Alternative adaptor plates available. |
Dimensions & Specifications
| Dimensions | 130mm x 130mm x 400mm |
| Charging System | IEC 61851 Mode 3 |
| Power Input | Single phase up to 32A |
| Power Output | Up to 7.14kW depending on column power supply |
| Protections | DC 6mA |
| Markings | UKCA / Elexon approved |
| OCPP | OCPP 1.6J compliant and OCPP 2.0.1 ready |
| LED | LED status indicator (green, blue and red) |
Design Features
| Customising Options | Available in bespoke colours and customised branding |
| Safety Feature | Locking mechanism to prevent disconnection of cable under load |
Compliance
| Standards | LVD 2014/35/EU, EMCD 2014/30/EU, BS EN61851-2019, EN61000-2, EN61000-3, CE certified, BS7671-2018 |
| GDPR | Your privacy and sensitive data is handled with care and in compliance with GDPR |
Charging Features
| Charging Options | Single phase 7.4kW |
| Metering | MID meter |
| Suitability | Suitable for business, commercial, fleet and public charging |
| Multi User | Multi charger, multi EV. Manage access and session for all users, chargers and EVs. |
Connectivity
| Connectivity | Ethernet, Wi-Fi and 4G sim card and 36 months data supplied as standard |
| Commissioning | Full configuration of the charger set up using a web portal |
| Secure Authentication | Protect your charger from unauthorised use using the RFIC access or use the plug and charge mode for fast and easy access |
| Configurable Cable Lock | Option to lock the cable into charger |
