Aspect Gen2 Zebra
Available from 20W-132W

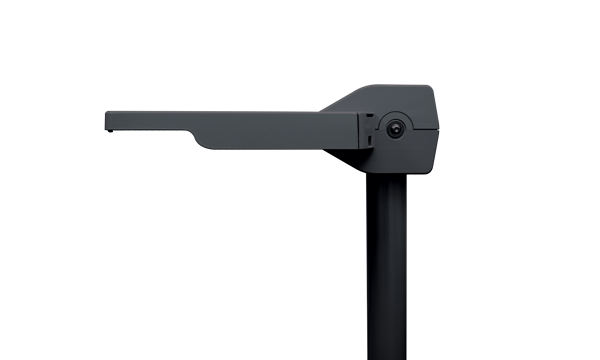

Aspect Gen2 Zebra is a specifically designed variant of the Aspect Gen2 range which caters solely for zebra crossings. Available in left and right distributions with the emphasis on vertical illuminance, the highlighted “strip” of light clearly defines the boundaries of the crossing on any type of road.
Available in a range of CCTs to offer contrast to road lighting.
For further information on the Aspect Gen2 Zebra luminaire, please email us at info@trtlighting.co.uk or give us a call on 01527 521162.
PowerSet feature available; field adjustable, integral power output selection device.
-
I
Electrical Class -
IK08
Impact Resistance -
IP66
Ingress Protection -
LED
Light Source -
2.7 Excellent
TM66 Score -
35°C
Maximum Ambient -
-20°C
Minimum Ambient -
8.1-9.4kg
Weight -
0.1233m²-0.1505m²
Wind Area
Contact us
Get in touch
Contact us for a quote today
Discover our exterior lighting solutions designed for energy efficiency and sustainability. Request a comprehensive quote tailored to your project needs today.
Downloads
-
Item one
Aspect Gen2 Brochure
.pdf | 6.99 MB
-
Item two
Aspect Gen2 Zebra 24 LED Datasheet
.pdf | 1.08 MB
-
Item three
Aspect Gen2 Zebra 32 LED Datasheet
.pdf | 3.37 MB
-
Item four
Aspect Gen2 Zebra 48 LED Datasheet
.pdf | 909.14 KB
-
Item five
Aspect Gen2 Zebra 64 LED Datasheet
.pdf | 4.62 MB
-
Item six
Aspect Gen2 Zebra Installation Leaflet
.pdf | 2.81 MB
-
Item seven
Aspect Gen2 Zebra QR Codes for PowerSet NFC
.pdf | 2.13 MB
-
Item eight
Aspect Gen2 Zebra FAB Sheet
.pdf | 214.77 KB
Photometry
TRT Lighting supports, promotes and uses Lighting Reality for all road lighting calculations.
Photometric Database
Our complete photometric database is available for use within this industry standard lighting design package which is available for download from www.lightingreality.com
Specification
Specifications
- LED colour temperature of 3000K, 4000K or 5700K
- Colour rendering index >70
- Projected L90 after 100,000 hours
- Power factor 0.95 at full load
- 1000 hours salt spray compliant, polyester powder coat finish in light grey, dark grey, black or a bespoke colour
- Marine grade high pressure die cast LM6 aluminium components
- Stainless steel fixing screws with stainless steel inserts in pivot
- Toughened ultra efficient safety glass cover
- Quick release canopy for ease of upgrade
- Lumi-LinQ wireless exterior lighting control system (optional)
- Controls – NEMA 7, Zhaga Book 18 (SR) socket (top and/or bottom) and Photocell
- CLO available
- PowerSet NFC for external programming of power output, CLO and dimming regimes (manual version available)
- Part Night Dimming (PND) with manual dimming override option
- Dim level 10-100%
- DALI compatible for use with CMS
- Optional surge protection 10kV/10kA
- Patented MountSet: Universal system providing post top 60mm or 76mm / side entry 34mm, 42mm, 60mm or 76mm mounting
- Post top inclination of 0°, +5° and +10°
- Side entry inclination of -10°, -5°, 0°, +5° and +10°
- Tool-less access (vandal-proof fixings optional)
- UMSUG codes available for full product range
Range Overview
| Aspect Gen2 Zebra – 24 LED | Aspect Gen2 Zebra – 32 LED | Aspect Gen2 Zebra – 48 LED | Aspect Gen2 Zebra – 64 LED | |
|---|---|---|---|---|
| System Power | 20-47W | 37-75W | 46-104W | 60-132W |
| Road Optics | ||||
| Area Optics | ||||
| LED CCT | 3000K, 4000K or 5700K | |||
| Lumen Output | Up to 7,540lm | Up to 11,825lm | Up to 16,697lm | Up to 21,830lm |
| LED CRI | >70 | |||
Shield Options – Aspect Gen2 Zebra – 24/32 LED
| Front | 83KIT73648 |
| Rear | 83KIT73649 |
| Side | 83KIT73650 |
Shield Options – Aspect Gen2 Zebra – 48/64 LED
| Front | 83KIT73648 |
| Rear | 83KIT73649 |
| Side | 83KIT73651 |
Highway Safety Tether Kit Options – Aspect Gen2 Zebra – All LED
| 76mm Post Ø | 83KIT73829 |
| 60mm Post Ø | 83KIT73830 |
| 42mm Post Ø | 83KIT73831 |
| 34mm Post Ø | 83KIT73832 |
Remote Control – Aspect Gen2 Zebra – All LED
| PowerSet NFC Remote Control | 03INT1907 |
Electrical Characteristics
| Aspect Gen2 Zebra – 24 LED | Aspect Gen2 Zebra – 32 LED | Aspect Gen2 Zebra – 48 LED | Aspect Gen2 Zebra- 64 LED | |
|---|---|---|---|---|
| System Power | 20-47W | 37-75W | 46-104W | 60-132W |
| LED CCT | 3000K, 4000K or 5700K | |||
| LED CRI | >70 | |||
| Lumen Output | Up to 7,540lm | Up to 11,825lm | Up to 16,697lm | Up to 21,830lm |
| Lumen Maintenance | Projected L90 after 100,000 hours | |||
| Drive Current | 650mA | 775mA | 700mA | 700mA |
| Driver Output | Constant current output with AM dimming | |||
| Power Factor (Full Load/Half Load) |
0.95/0.90 | |||
| Operational Voltage | 220-240VAC rms | |||
| Operating Frequency | 50/60Hz | |||
| Inrush Current (Apk/50%-µS) |
42A/238µS | 42A/238µS | 80A/250µS | 80A/250µS |
| Running Current (Max) |
329mA | 329mA | 579mA | 579mA |
| Surge Protection (COM/DIF) |
10kV/6kV | |||
| Additional Surge Protection (On Request) |
10kV/10kA | |||
| Lighting Controls Options | NEMA 7, Zhaga Book 18 (SR) socket (top and/or bottom), Photocell, Lumi-LinQ, PND and CMS compatible | |||
| Dimming Protocols | DALI-2 (parts 251 & 253), D4i (optional) | |||
Mechanical Characteristics
| Housing Material | Marine grade high pressure die cast LM6 aluminium components |
| Cover Material | Toughened ultra efficient safety glass cover |
| Lens Material | PMMA and polycarbonate options |
| Housing Finish | Chromate free pre-treatment, polyester powder coat, light grey (RAL9006), dark grey (RAL7022), black (RAL9005) or bespoke colours on request |
| Ingress Protection Rating | IP66 |
| Weight | 8.1kg (24 & 32 LED versions)
9.4kg (48 & 64 LED versions) |
| Wind Area | 0.1233m² (24 & 32 LED versions)
0.1505m² (48 & 64 LED versions) |
| Impact Resistance Rating | IK08 |
| Mounting Methods | Post top 60mm or 76mm Side entry 34mm, 42mm, 60mm or 76mm |
| Mounting Inclination | -10°, -5°, 0°, 5° & 10° |
| Photometric Centre | 398.5mm-550.9mm (to centre of PCB) |
