Aspect Floodlight

Available from 40W-290W

This new precision engineered LED floodlight has joined the Aspect family taking external lighting to a new dimension in terms of efficiency (up to 163 luminaire lumens per circuit watt) and longevity (up to 100,000 hours). This is achieved through significant investment in high quality die-cast heat sinks and in-house manufactured printed circuit boards which positions the very latest top brand LEDs within precise acrylic lenses.

With a cradle mount fixing suitable for wall and column installations and angular adjustments ranging from 0° to 180°, this floodlight is extremely adaptable.

A variety of power levels, area and road optical distributions and two body sizes provides every option needed for car park, loading bay, general amenity and road lighting applications.

Powerset Logo

PowerSet feature available; field adjustable, integral power output selection device.

Specifications
https://www.trtlighting.co.uk/wp-content/uploads/2023/08/cta-bg.jpg

Contact us

Get in touch

Contact us for a quote today

Discover our exterior lighting solutions designed for energy efficiency and sustainability. Request a comprehensive quote tailored to your project needs today.

Get a Quote

Downloads

Photometry

TRT Lighting supports, promotes and uses Lighting Reality for all road lighting calculations.

Photometric Database

Our complete photometric database is available for use within this industry standard lighting design package which is available for download from www.lightingreality.com

Specification

Specification

  • LED colour temperature PC-Amber*, 2200K, 2700K, 3000K or 4000K
  • Colour rendering index >70 (*>55)
  • Projected L90 after 100,000 hours
  • Power factor 0.95 at full load
  • Polyester powder coat finish in light grey, dark grey, black or a bespoke colour
  • High quality high pressure die cast LM6 aluminium components
  • Stainless steel fixing screws with stainless steel inserts
  • Toughened flat glass cover providing 0% ULOR
  • In-built ventilation (breather) plug for pressure equalisation in the LED module and gear housing

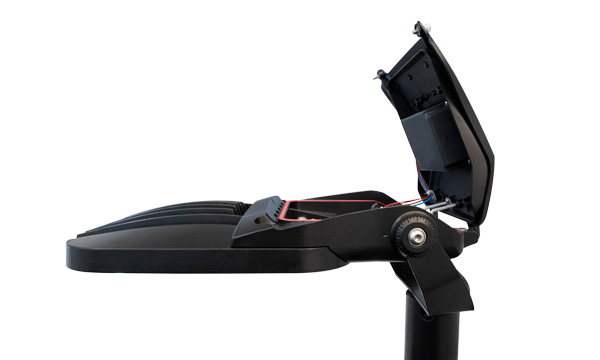

  • Fully captive hinged lid with replaceable gear tray
  • Lumi-LinQ option
  • CLO available
  • PowerSet feature – Field adjustable, integral power output selection device (optional)
  • Controls – NEMA 3, 7 and Zhaga Book 18 (SR) socket (top and bottom)
  • Part Night Dimming (PND)
  • Dim level 10-100%
  • DALI compatible for use with CMS
  • Optional surge protection 10kV/10kA
  • Integrated 3-hour emergency
  • Dual cable entry for loop-in/loop-out mains
  • Cradle mount fixing suitable for wall and column installations
  • Angular adjustments in 10° steps between 0° and 180°

Range Overview

Type Aspect Floodlight 32 LED Aspect Floodlight 64 LED Aspect Floodlight 80 LED Aspect Floodlight 96 LED
System Power 40-100W 110-170W 170-230W 230-290W
LED CCT PC-Amber*, 2200K, 2700K, 3000K or 4000K
Lumen Output Up to 14,054lm Up to 25,535lm Up to 34,009lm Up to 42,531lm
LED CRI >70 (*>55)

Accessories – Aspect  Floodlight 32 & 64 LED

Rear Shield 81BAF70458
Front Shield 81BAF70459
Side Shield 81BAF70510
76mm Post Top Adaptor 83KIT72743
89mm Post Top Adaptor 83KIT72744
101mm Post Top Adaptor 83KIT72745
76mm Twin Arm Post Adaptor 83KIT72746
89mm Twin Arm Post Adaptor 83KIT72747
101mm Twin Arm Post Adaptor 83KIT72748

Accessories – Aspect  Floodlight 80 & 96 LED

Universal Front/Rear Shield 81BAF70458
Side Shield 81BAF70657
76mm Post Top Adaptor 83KIT72743
89mm Post Top Adaptor 83KIT72744
101mm Post Top Adaptor 83KIT72745
76mm Twin Arm Post Adaptor 83KIT72746
89mm Twin Arm Post Adaptor 83KIT72747
101mm Twin Arm Post Adaptor 83KIT72748

Electrical Characteristics

Aspect Floodlight 32 LED Aspect Floodlight 64 LED Aspect Floodlight 80 LED Aspect Floodlight 96 LED
System Power 40-100W 110-170W 170-230W 230-290W
LED CCT PC-Amber*, 2200K, 2700K, 3000K or 4000K
LED CRI >70 (*>55)
Lumen Output Up to 14,054lm Up to 25,535lm Up to 34,009lm Up to 42,531lm
Lumen Maintenance Projected L90 after 100,000 hours
Drive Current 385-989mA 572-876mA 717-949mA 1,000mA
Driver Output Constant current output with AM dimming
Power Factor
(Full Load/Half Load)		 0.95/0.90
Operational Voltage 220-240VAC rms
Operating Frequency 50/60Hz
Inrush Current
(Apk/50%-µS)		 65A/160µS 77A/180µS 13A/1320µS
Running Current
(Max)		 419mA 712mA 1,020mA 1,230mA
Surge Protection
(COM/DIF)		 10kV/6kV
Additional Surge Protection
(On Request)		 10kV/10kA
Lighting Controls Options NEMA 3, 7, Zhaga Book 18 (SR) socket, PND and CMS compatible
Dimming Protocols DALI
Luminaire Qty on 16A MCB Type C 20 10 10 8

Mechanical Characteristics

Housing Material High pressure die cast LM6 aluminium
Cover Material Toughened flat safety glass
Lens Material PMMA
Housing Finish Chromate free pre-treatment, polyester powder coat, light grey (RAL9006), dark grey (RAL7022), black (RAL9005) or bespoke colours on request
Ingress Protection Rating IP66
Weight 13.0kg add 0.4kg for emergency version (32 LED and 64 LED versions)

14.2kg add 0.4kg for emergency version (80 LED and 96 LED versions)
Wind Area 0.047m² (32 LED and 64 LED versions)

0.056m² (80 LED and 96 LED versions)
Impact Resistance Rating IK08
Mounting Methods Post top (using adaptors) 76mm, 89mm or 101mm wall mount
Mounting Inclination 10° increments between 0° and 180°
Photometric Centre Post top 424mm / wall mount 386mm (32 LED and 64 LED versions)

Post top 488mm / wall mount 450mm (80 LED and 96 LED versions)
