Vapor

Available from 20W-50W

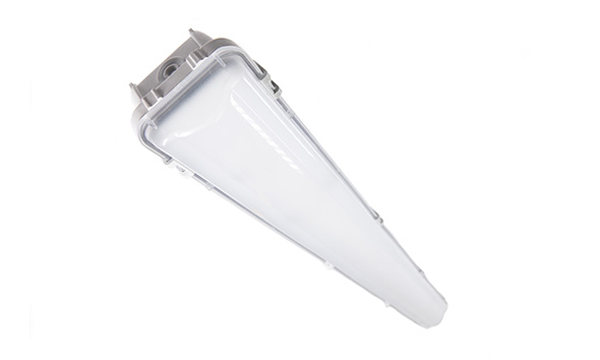

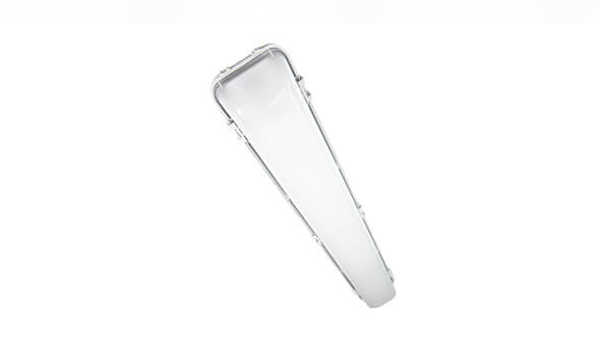

The essential Vapor anti-corrosive LED luminaire family comes finished in grey with frosted prismatic polycarbonate cover as standard. With smooth external surfaces for ease of cleaning and fast installation via external stainless steel brackets which preserve the IP66 rating. Utilising long life LED light engines across the family with maintenance friendly replaceable internal components.  Used as a temporary lighting solution.

Specifications
https://www.trtlighting.co.uk/wp-content/uploads/2023/08/cta-bg.jpg

Contact us

Get in touch

Contact us for a quote today

Discover our exterior lighting solutions designed for energy efficiency and sustainability. Request a comprehensive quote tailored to your project needs today.

Get a Quote

Downloads

Photometry

For photometric data, please email photometry@trtlighting.co.uk

Specification

Specification

  • LED colour temperature 4000K
  • Colour rendering index >80
  • Projected L70 after 50,000 hours
  • Power factor >0.89 at full load
  • Lightweight low profile luminaire
  • Optional surge protection 10kV/10kA
  • Integral 3 hour emergency (optional)

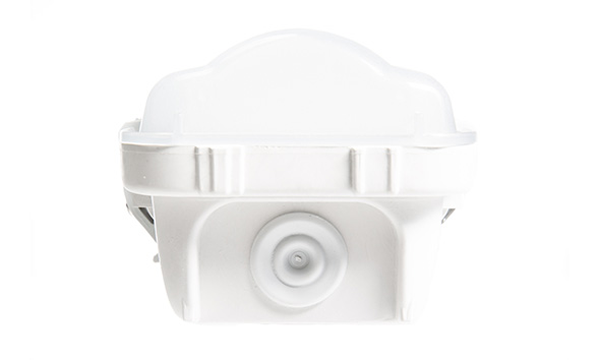

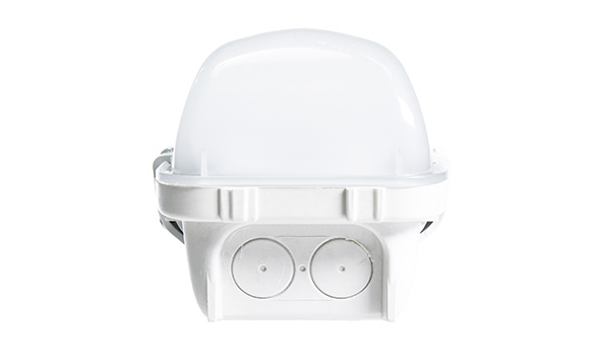

  • End or top entry connections for housing
  • Through wiring available
  • IP68 in-line connectors
  • LSF0H and fire resistant cable options

Range Overview

Vapor 240V – 2ft Vapor 240V – 4ft Vapor 240V – 5ft Vapor 110V – 2ft Vapor 110V – 4ft Vapor 110V – 5ft
System Power 20W 34W 47W 22W 37W 50W
LED CCT 4000K
Lumen Output 2,400lm 4,100lm 5,600lm 2,400lm 4,100lm 5,600lm
LED CRI >80

Electrical Characteristics

Vapor 240V – 2ft Vapor 240V – 4ft Vapor 240V – 5ft Vapor 110V – 2ft Vapor 110V – 4ft Vapor 110V – 5ft
System Power 20W 34W 47W 22W 37W 50W
LED CCT 4000K
LED CRI >80
Lumen Output 2,400lm 4,100lm 5,600lm 2,400lm 4,100lm 5,600lm
Lumen Maintenance Projected L70 after 50,000 hours
Drive Current 350mA 320mA 360mA 350mA 320mA 360mA
Driver Output Constant current output with AM dimming
Power Factor
(Full Load/Half Load)		 0.89 0.95 0.89 0.95
Operational Voltage 240V 110V
Operating Frequency 50/60Hz
Inrush Current
(Apk/50%-µS)		 8A/80µS 6A/80µS 18A/88µS 23A/120µS 21A/240µS
Running Current
(Max)		 110mA 160mA 220mA 250mA 360mA 480mA
Surge Protection
(COM/DIF)		 2kV/1kV 1kV
Additional Surge Protection
(On Request)		 10kV/10kA
Dimming Protocols DALI 0-10V
Dim Level 1-100% 25-100% 5-100%
Max. Driver Qty on MCB 16A Type C 100 40 140 83 25
Insulation Class Class 1
Optional Connections & Through Wiring Pre-cabled with LSF0H or Arctic Grade PVC cable with IP68 in-line connectors

Mechanical Characteristics

Housing Material GRP
Cover Material Polycarbonate
Ingress Protection Rating IP66
Weight 1.0kg (2ft version)

2.0kg (4ft version)

2.5kg (5ft version)
Impact Resistance Rating IK08
Mounting Methods Surface mounted or suspended
